APS 120A 3.2KW single motor e-board DIY kit
- Order number: ESK8B10316
This 3.2 KW single motor kit made by alien power system has been specially designed for the Alien Drive Kit 32T but works with any other motor mount kit compatible with the motors. The Motor has built in hall effect sensors!

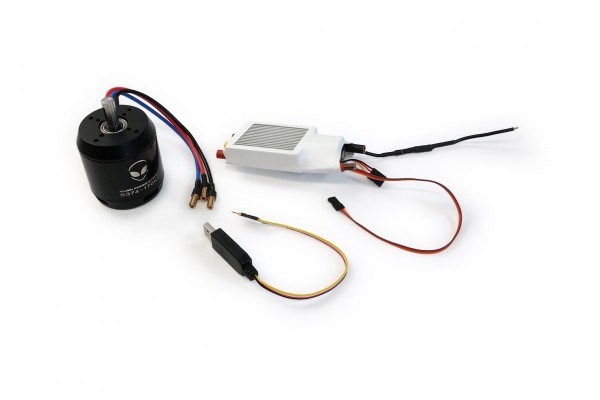

Das Set beinhaltet:
1- Electronic Speed Controller 120A 2-12S OPTO
2- 1x 63mm Alien Motor, 170 KV, 3200 Watt, 80A, dimensions: 63mm x 47mm, 10mm motor shaft, 10Z
3mm key way on the shaft for sprocket of pulley.
3- HV Battery Elimination Circuit New Version! BEC now integrated in the ESC
4- USB Cable to program the ESC using a PC
ESC Specs:
Battery Voltage 2S to 12S
Easy to program using a Prog-Box, PC via USB or using the remote (limited)
Automatic firmware upgrades
Low voltage cut off to protect the battery
Adjustable Timing (0° - 30°)
3 Acceleration profiles (Logarithmic, Linear, Exponential)
3 Throttle curves (Soft, Medium, Hard)
Motor rotation switchable
HV Battery Elimination Circuit Specs:
Max. input voltage: 14S (51,8V)
Max. current: 12A
Max. output voltage: 5V / 5,5 V / 6V (toggle-able)
Number of outputs: 2
Weight: 45g
Dimensions: 60 x 25 x10 mm
Notice: Products by Alien Power System, which are not labeled as "ready to ship" may experience shipping times of more than 6 weeks because of high demand / low stock. We'd like to apologize for any inconvenience.
| Motordiameter: | 63mm |
| KV: | 170 KV |
| Sensor: | No |
| Power: | 3200 Watt |
| Brushes: | Brushless Motor |
| Continous current: | 120 A |
| Voltage range: | 2 - 12 S |
| BEC: | Integrated |
| Single / Dual Motor: | Single Motor |
| BEC power: | 5/5,5/6V switchable | 12A |
