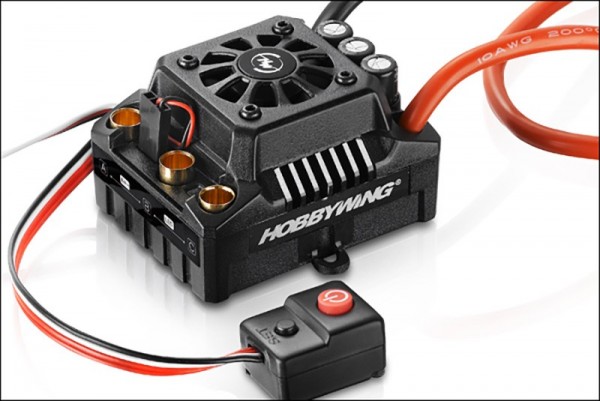

Hobbywing Ezrun BL ESC MAX8 V3 150A
- Order number: ESK8B10482
The Ezrun series is made for those that don't need the degree of adjustment of the Xerun series, but still want solid Hardware. The Ezrun ESCs are designed to run in sensorless systems, but can also drive motors with integrated sensor. In the latter case however without the advantages inherent to sensored systems. Thanks to the integrated BEC you don't need an additional battery for the remote receiver.
Current 150A continuous, 950A burst
Voltage: 3-6S LiPo or 9-18 Cell NiMH
Inner resistance: 0,0002 Ohm
BEC: 6V / 7.2V, 6A
Motor suggestion: Sensored or Sensorless Brushless Motors (Sensored Motors in Sensorless-Mode only)
Motor limit:
Using 4S LiPo: KV<=3000, using 6S LiPo: KV<=2400
(Motor size: 4274)
Dimensions: 59.8x48x36.8 mm
Weight: 173.5 g
| Sensor: | No |
| Continous current: | 150 A |
| BEC: | Integrated |
| Single / Dual Motor: | Single Motor |
| Voltage range: | 3 - 6 S |
