- Order number: ESK8B10526

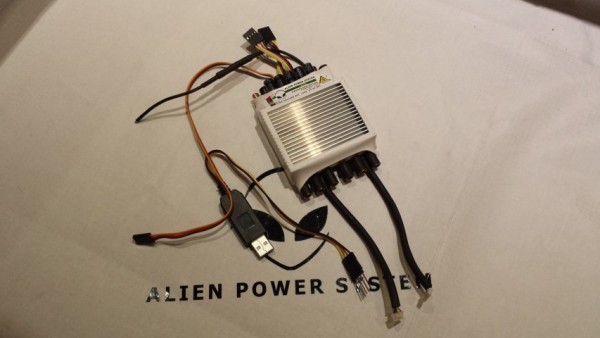

This ESC is able to control 2 motors at the same time. The motors can be individually configured for maximum compatibility. Only one connection between remote receiver and ESC is necessary. Further features of this ESC are a Battery Spark Suppression Wire to protect the system when connecting the battery, a powerful heat sink, the ability to program the controller from the PC via USB connection and an integrated BEC able to deliver up to 5V / 3A, with which you won't need a separate battery for the receiver.
Further Specs:
Dimensions: 90 x 70 x 20 mm
Weight: 220g
Operational voltage: 2S- 7S.
BEC: 5V / 3A
ESC programmable via: Remote (limited), Prog Box or PC (full)
Firmware updateable via PC
Low-Voltage Cut-off
Adjustable timings (0°-30°)
3 Throttle modes
3 acceleration profiles
Motor direction switchable in software.
Notice: When ordering products by Alien Power System not marked as being "ready to ship today" you may experience delivery times of more than 6 weeks because of high demand / short supply. We would like to apologise for the inconvenience
Continous current: | 120 A |
Voltage range: | 2-7 S |
BEC: | Integrated |
Single / Dual Motor: | Dual Motor |
BEC power: | 5V / 3A |
Sensor: | Sensor capable |
